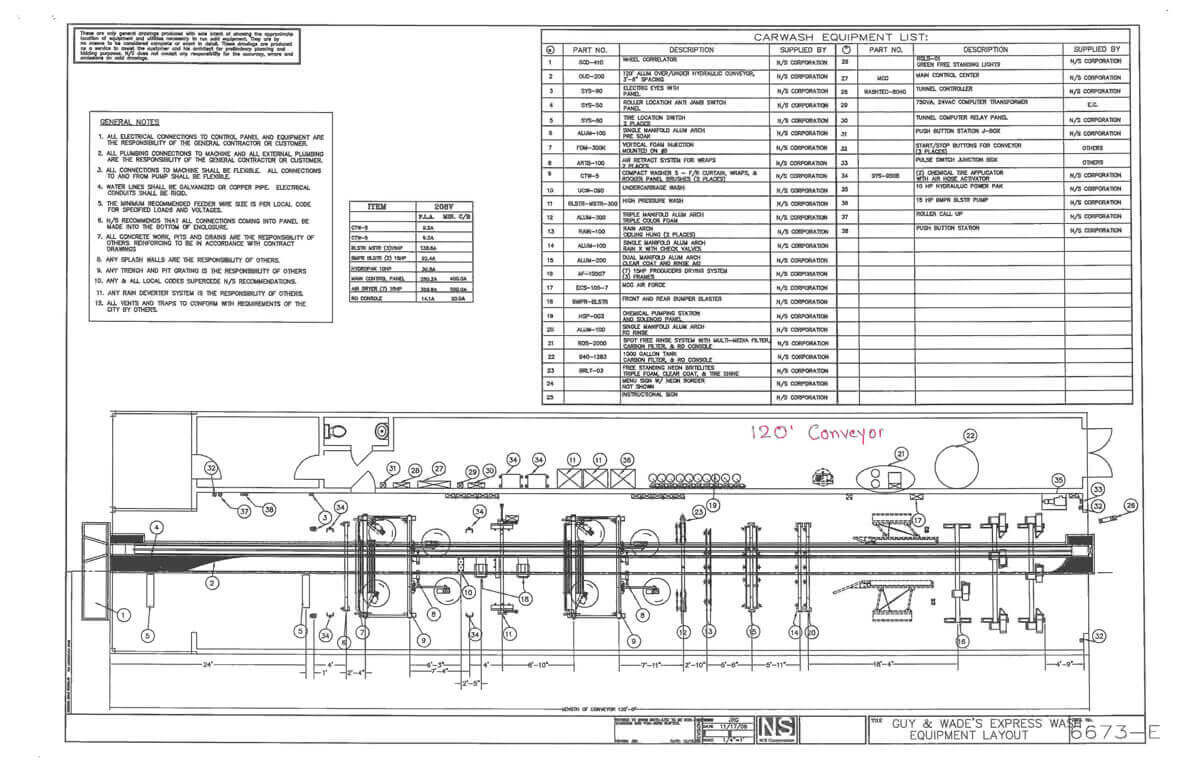

120-Foot Front Wheel-Pull Conveyor with an ECO10
A Conveyor Tunnel Car Wash for Large Capacity
Every vehicle that is in constant use collects huge amounts of dirt, grime, and mud. Even the largest transit corporations in the world must spend time thinking about how they are going to keep their prized fleet clean and minimize the amount of waste generated by doing so.
Thanks to the accomplished team of designers at NS Corporation, there is no longer a need to worry about maintaining your fleet, no matter how many vehicles or their size. Our eco-friendly car wash tunnel layouts feature state-of-the-art design attributes that reduce environmental waste while at the same time producing that shiny result we all strive for.
Conveyor and Control |
(1) Transformer (2) Start/Stop Buttons (3) Over/Under Conveyor (8) Confirmation Sign (20) Electric Eyes (21) Tunnel Controller (22) Pulse Switch J-Box (23) Pulse Switch (24) Belt Correlator (29) Roller Call-Up J-Box and Air Trio (30) Roller Present Switch (31) Instruction Sign (32) Stop & Go Sign |
Power Cleaning |
(4) Tire Soap Applicator (5) Spray Blocker Curtain (6) Aqua Wall Arch (7) 5 HP Compressor (10) ECO-7 Front-to-Rear System (17) Chemical Mixing Board (6 station) (26) 7-Spinner Blaster Arch |
Water Management |
(9) 20 HP Reclaim Pump (14) Reverse Osmosis (16) Reverse Osmosis Storage Tank (18) Above-Ground Clarifier (25) 1500-Gallon Reclaim Storage Tank |
Finishing Resources |
(11) Bubblizer (Wax) (12) Final Rinse Arch (Rinse/Wax) (13) Air Wiper Blower System (15) RO Rinse Pump (2 HP) (19) Vacuum Station System (28) RO Rinse Arch |
The tunnel systems include everything you need for an operational large-vehicle car wash. Enjoy automated functions, thorough cleaning, and eco-friendly design elements that reduce overhead.
Trust that each component is built to work hard and last long, keeping up with the vehicles that your wash system services every day.
Who This System Is Built For
The 100-foot-plus conveyor tunnel car wash serves large vehicles and heavy use cases, especially those with large fleets. Consider some of the clearest use cases:
- Municipal transit agencies
- School bus fleets
- Logistics and distribution centers
- Refuse and utility fleets
Clean Your Fleet, Lower Your Costs, and Keep Satisfaction High
NS Corporation offers a wide range of car wash tunnel layouts for servicing vehicles that require a wash bay of over 100 feet. Using a 120-foot conveyor and front wheel pull system, a vehicle will be taken from rinse to dry in little time.
Even though all environmentally-friendly car wash layout designs include every part you need for a complete installation, the experts at NS Corporation are more than willing to help you out along the way. We have worked with thousands of international transit corporations and have proudly played a role in reducing water waste while keeping our customers’ vehicles sparkling clean.
