If your car wash needs a water reclaim system, either to save money on water or comply with new regulatory requirements, NS Wash has you covered with a wide variety of systems to suit every need. Check out just a sample of our selection and its impressive array of features below.

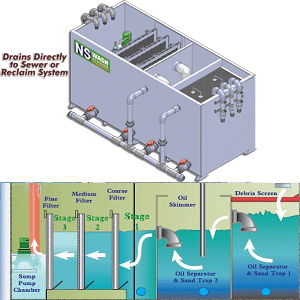

AG-CLA Above ground clarifier system designed to recover, clean, and condition used wash water, removing floating contaminants as small as 40 microns in size. Capacity of 200 gpm. System includes:
- Clarifier Sand and Grease Trap
- Oil removal system
- 3 Micro Cleaning Foam Filters
- Drain Valves
- Micro Filter Screens
- Float Valve
- 2 pumps 1/2 HP drain transfer (520-1603-25) 2″ output
- Clarifier Tank
- 3 SUMP Pumps 1/2 HP to holding tank
- Capacity of up to 200 GPM
- Water tank Not Included

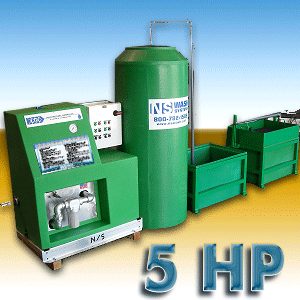

WRS-05 Above-ground 5 HP water recovery system. Water reclaim system includes:
- Two 1/2 HP pump transfer systems
- One 5 HP car wash water pump motor
- PAC 1 particle accelerator
- Motor control panel
- Thermal protection
- Disconnects
- 24-volt activation system
- Indicating lights
- Inline filtration system
- Low-pressure shut-off control
- Pressure indicators
- Car wash water tank not included
WRS-10 An above-ground 10 HP water recovery system. Includes the same components as the WRS-05, with the exception of a 10 HP pumping motor instead of the 5 HP motor.

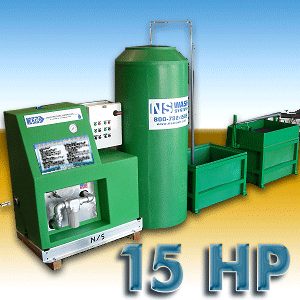

WRS-15 An above-ground 15 HP water recovery system. This water reclaim system includes:
- One 15 HP pumping motor
- Two 1/2 HP pump transfer systems
- PAC 3 particle accelerator
- Motor control panel
- Thermal protection
- Disconnects
- 24-volt activation system
- Indicating lights
- Inline filtration system
- Low-pressure shut-off control
- Pressure indicators
- Tank not included
WRS-20 An above-ground 20 HP water recovery system.
Has the same components as the WRS-15, with the exception of a 20 HP car wash water pump motor instead of the 15 HP motor.

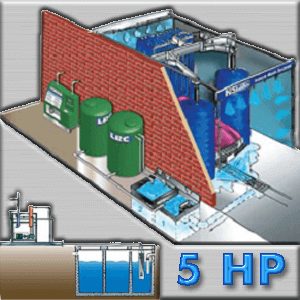

RC-500 Complete below groundwater recovery system to be used with underground clarifier. This water reclaim system includes:
- 5 HP With ODP Motor
- Single Stage Centrifugal Pump with Prime Tank
- Foot Valve – (2-Inch)
- Barrel Screen
- PAC I Particle Accelerator
- Pressure Relief Valve
- Motor Starter with Main Disconnect Switch (Optional)
- Car Wash Water Tank Not Included
RC-1000 Same as the RC-500, except with 10 HP pump motor.
RC-1500 Same as the RC-500, except with 15 HP pump motor, and 3-inch foot valve & PAC II particle accelerator.
RC-2000 Same as the RC-500, except with 20 HP pump motor, and 3-inch foot valve & PAC II particle accelerator.
With our wide variety of systems and features, the perfect car wash water reclaim system is waiting for you at NS Wash, each including a service maintenance plan. Buy yours today!
