Reclaim

Above-Ground Water Reclamation System

WRS-05 Above-Ground Water Recovery System (5 HP).  System includes:

  • Two 1/2 HP Pump Transfer Systems.
  • One 5 HP Pumping Motor.
  • PAC 1 Particle Accelerator.
  • Motor Control Panel.
  • Disconnects.
  • 24-Volt Activation System.
  • Indicating Lights.
  • In-Line Filtration System.
  • Low Pressure “Shut Off” Control.
  • Pressure Indicators.
  • Tank(s) not included.
Above-Ground Transit Water Reclamation

WRS-10 Above-Ground Water Recovery System (10 HP).  System includes:

  • Two 1/2 HP Pump Transfer Systems.
  • One 10 HP Pumping Motor.
  • PAC 1 Particle Accelerator.
  • Motor Control Panel.
  • Thermal Protection.
  • Disconnects.
  • 24-Volt Activation System.
  • Indicating Lights.
  • In-Line Filtration System.
  • Low Pressure “Shut Off” Control.
  • Pressure Indicators.
  • Tank(s) not included.
Popular Water Reclamation System

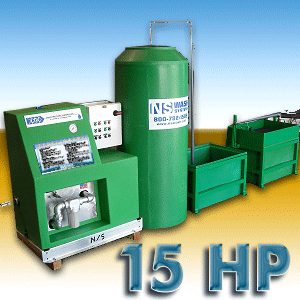

WRS-15 Above-Ground Water Recovery System (15 HP).  System includes:

  • Two 1/2 HP Pump Transfer Systems.
  • One 15 HP Pumping Motor.
  • PAC 3 Particle Accelerator.
  • Motor Control Panel.
  • Thermal Protection.
  • Disconnects.
  • 24-Volt Activation System.
  • Indicating Lights.
  • In-Line Filtration System.
  • Low Pressure “Shut Off” Control.
  • Pressure Indicators.
  • Tank(s) not included.
Best Water Recovery System

WRS-20 Above-Ground Water Recovery System (20 HP).  Systems includes:

  • Two 1/2 HP Pump Transfer Systems.
  • One 20 HP Pumping Motor.
  • PAC 3 Particle Accelerator.
  • Motor Control Panel.
  • Thermal Protection.
  • Disconnects.
  • 24-Volt Activation System.
  • Indicating Lights.
  • In-Line Filtration System.
  • Low Pressure “Shut Off” Control.
  • Pressure Indicators.
  • Tank(s) not included.
Water Cleaner & Clarifier

AG-CLA-T Above-Ground Clarifier System designed for Transit applications to recover, clean, and condition used wash water, removing floating contaminants as small as 40 microns in size.  Systems includes:

  • Clarifier Sand and Grease Trap.
  • 3 Micro Cleaning Foam Filters.
  • Micro Filter Screens.
  • 2 pumps 1/2 HP drain transfer (520-1603-25) 2″ output.
  • Clarifier Tank.
  • 3 SUMP Pumps 1/2 HP to holding tank.
  • 1,500 Gallon Holding Tank.
  • 5 HP pumping motor.
  • Indicating Lights.
  • Low pressure “shut off” control.
  • Particle accelerator.
  • Pressure indicators.
Underground Water Recovery System

RC-500 Complete  Below-Ground Water Recovery System (5 HP) to be used with underground clarifier.  Systems includes:

  • 5 HP With ODP Motor.
  • Single Stage Centrifugal Pump with Prime Tank.
  • Foot Valve – (2-Inch).
  • Barrel Screen.
  • PAC I Particle Accelerator.
  • Pressure Relief Valve.
  • Motor starter with main disconnect switch available.
Underground Water Reclamation System

RC-1000 Complete Below-Ground Water Recovery System (10 HP) to be used with underground clarifier.

  • Same as the RC-500 except with 10 HP pump motor.

RC-1500 Complete Below-Ground Water Recovery System (15 HP) to be used with underground clarifier.

  • Same as the RC-500 except with 15 HP pump motor.
  • 3″ Foot valve and PAC II Particle accelerator.

RC-2000 Complete Below-Ground Water Recovery System (20 HP) to be used with underground clarifier.

  • Same as the RC-500 except with 20 HP pump motor.
  • 3″ Foot valve and PAC II Particle accelerator.

4M-RC500 Reclaim System (5 HP), complete with Control Panel Manifold Float Switch.

WWS-220  Below-Ground Recovery System for truck and bus wash systems.  System includes:

  • 300 GPM Capacity.
  • 15 HP Self-Prime Pump. Not To Exceed 25’ From Pipe Inlet.  7.5 HP pump available.
  • 3-Inch Vertical Check Valve, Strainer, and Cam Coupler Quick Disconnect.
  • Twin Cyclonic Separators.
  • 1.0 Cubic Yard Sludge Cart.
  • Electrical Control Panel (UL Approved).
  • 1,500-Gallon Tank With Float Controls.
  • Barrel Screen Filter.
  • 10 HP Pump System to Provide Water to Wash Package.

When you’re thinking about converting your business into one that makes a smaller environmental impact, you might want to consider a car wash water recovery system. Since water is one of our most precious resources, and the one most used in wash systems, changing the way you use and recycle water makes all the difference to your business and to the environment.

Eco-Friendly Innovations

At N/S Corporation, we always consider the environment as we develop and patent new innovations for wash systems nationwide. Since water conservation has become such an important topic of conversation for wash system operators, we’ve devoted a lot of time and resources to ensure our car wash recovery systems are versatile, efficient, and cost-effective.

Product Specifications

There are a variety of options available for our reclaim and recovery systems, including systems designed for above ground installation, below ground installation, and super compact systems that save space.

Depending on the needs of your operation, you can find an appropriate reclaim system. Most of our systems range from 5-20 HP and come installed with all the necessary equipment. With your reclaim and recovery system you’ll receive filtration systems, particle accelerators, and pump transfer gear.

Find out how a car wash recovery system can help your wash when you contact N/S Corporation today.
