ECO3-WLX

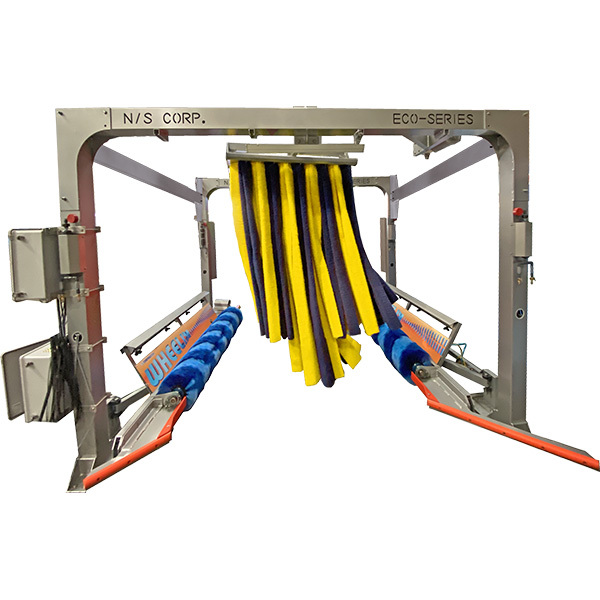

ECO3-WLX back view illustration.
ECO3-WLX back view illustration.

ECO3-WLX

When you want more cleaning options in limited space, the ECO3-WLX solves problems. Designed to fit in just 16 feet of tunnel space, it offers wrap-around brushes for the top, front, sides, and back. Wheelix technology can clean wheels and the lower sides, completing the wash capabilities while saving space.

With water recycling and reclamation options, you can maximize efficiency and lower your environmental footprint even while you meet strict operating parameters. It forms the backbone of many specialized car washing systems.

CONTACT US FOR PRICING INFORMATION

FEATURES

The ECO3-WLX is a common favorite among the NS Corporation lineup. It gives you robust operational capabilities in limiting environments, presenting one of the most powerful options available within such a limited operational space.

This system shines in small or medium volumes, handling a range of vehicles with effective throughput and time and resource saving design elements:

  • One pair of Wrap-A-Round brushes
  • One side-to-side curtain
  • One set of Wheelix washers
  • Motor control station
  • Rust-free aluminum framework
Specifications System Dimensions System Utility Requirements Options

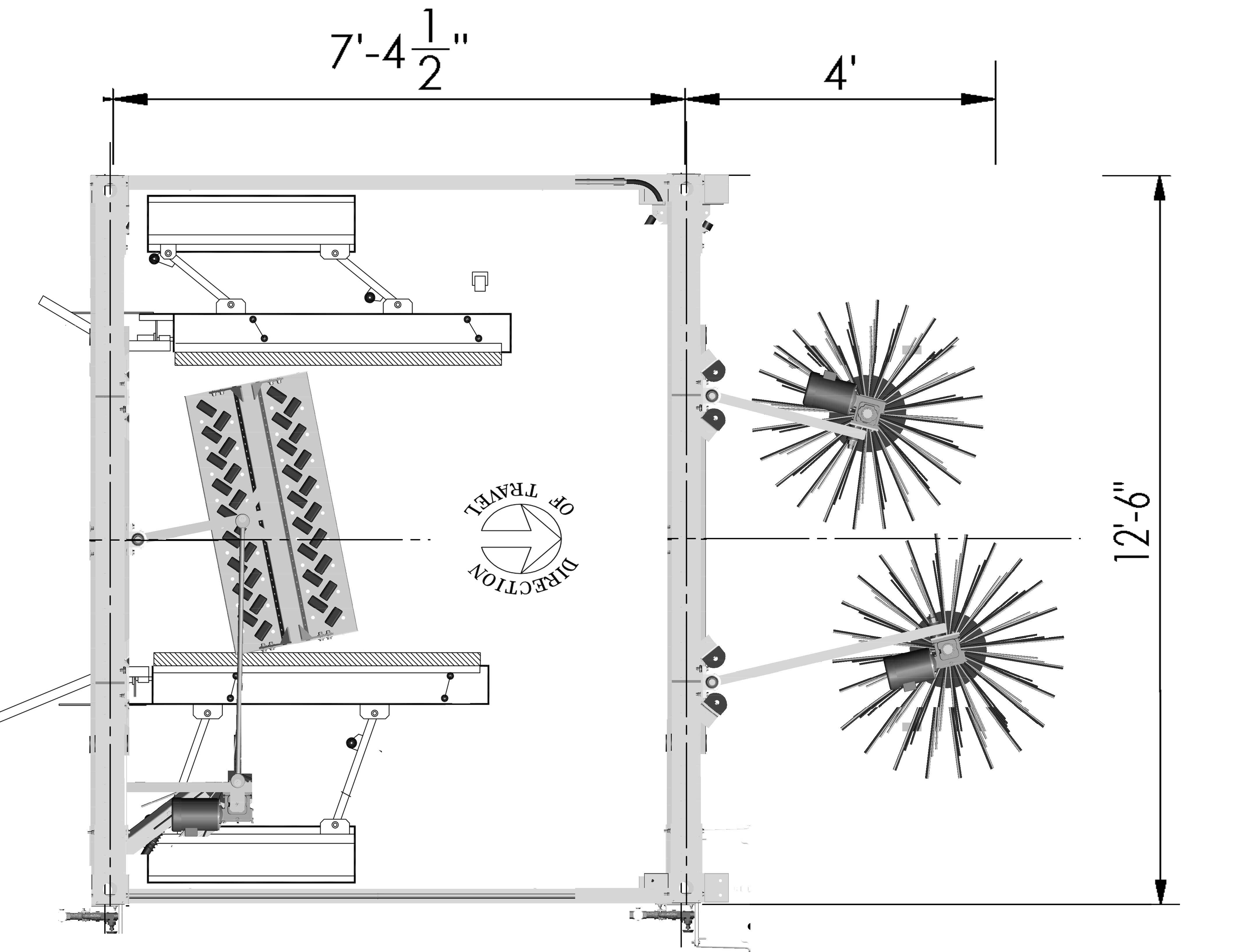

Dimensions of ECO3-WLX car wash module
  • Length: 16 feet
  • Width: 12 feet, 6 inches
  • Height: 9 feet, 6 inches
  • Water pressure: 23 gpm at 70 psi
  • Voltage/Amperage: 208/15, 240/13.7, 480/6.9, or 575/5.6

The ECO3-WLX enhances car washing operations with selectable features. Choose from among them to customize your washing experience while still meeting strict dimensional specifications:
