Guide rail systems improve car wash operations by protecting vehicles and ensuring precise alignment throughout the automated process. You can find unique rail systems that provide the features you need for your wash.
NS Corporation designs guide rails for fleet vehicle wash systems with volume, performance, and longevity in mind.
FLEET WASH GUIDE RAILS: SUPERIOR ALIGNMENT AND SERVICE
NS Corporation is here to help you with your high-quality fleet wash guide rail needs. You can get superior alignment tools and equipment, and you can pair them with a service contract that ensures better performance over time. Contact us today to get started.

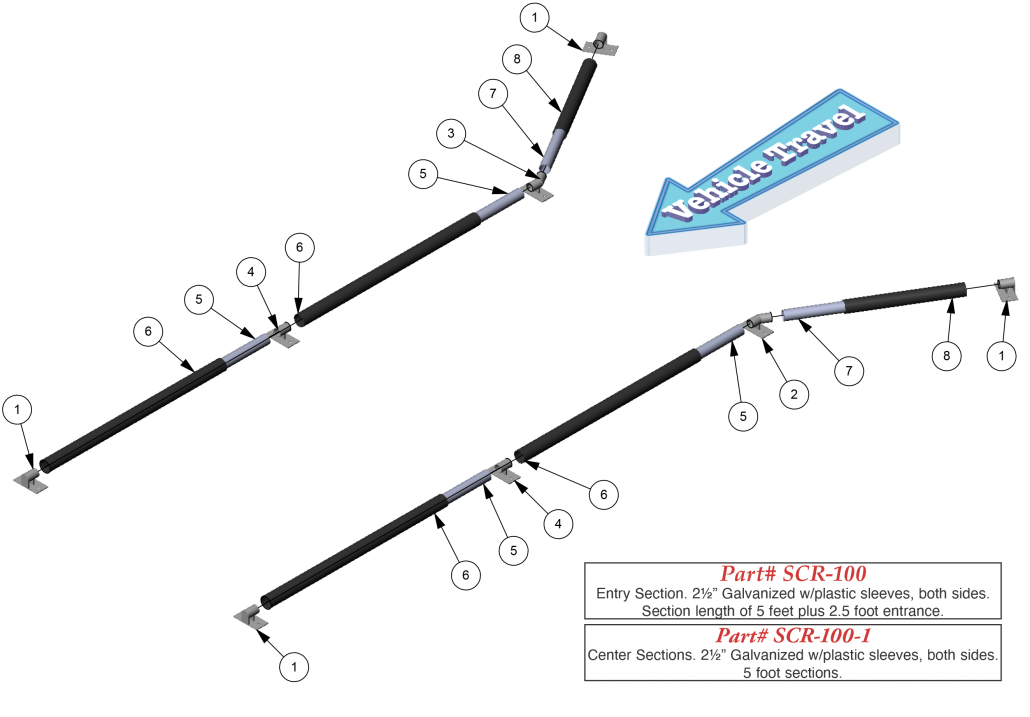

SCR-100 Guide Rails
Galvanized steel makes rails with cleats designed to create a safe entry for vehicles. Heavy-duty protective plastic sleeves aid protection while minimizing maintenance.
The package includes single, central, and middle cleats with four-inch clearance.
SCR-100 Features:
- 7½′ entry safety curb rail
- 2½″ galvanized guide system
- Plastic sleeves on both sides and cleats
- Section length of 5′ plus 2.5′ entrance
- Includes single, central, and middle cleats
- Standard height: 4″
SCR-100-1 Features:
- Center sections safety curb rail
- 2½″ galvanized guide system
- Plastic sleeves on sides and cleats
- Additional 5′ sections
- Standard height: 4″

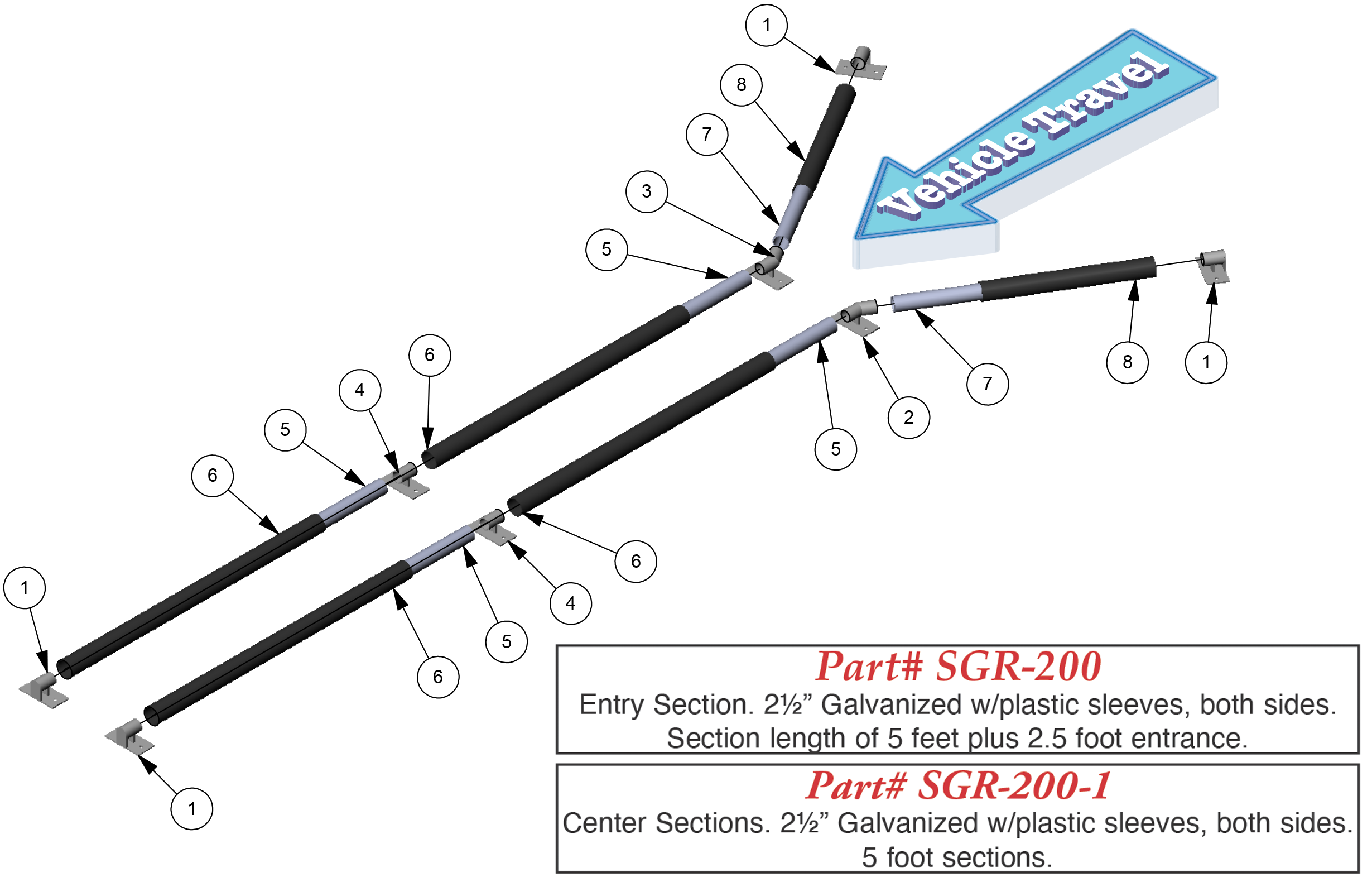

SGR-200 Guide Rails
Increase protection further with the SGR-200 series. Twin-rail containment adds another layer of protection that puts a durable rail on each side of both tires.
Increased tire protection also enables enhanced tire cleaning systems.
SGR-200 Features:
- 7½′ entry safety guide rail
- 2½″ twin rail tire containment system
- Plastic sleeves for outside rail, cleats
- Length of 5′ plus 2.5′ entrance
- Includes single, corner and end cleats
- Standard height: 4″
SGR-200-1 Features:
- Center sections safety guide rail
- 2½″ twin rail tire containment system
- Plastic sleeves for outside rail, cleats
- Additional 5′ sections
- Standard height: 4″
