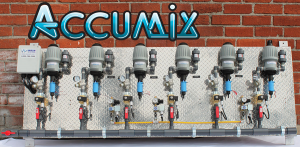

Chemical Backroom


Chemical mixing and solenoid control panel; centralized water and air feed.


  • Central aluminum panel can be mounted directly to wall or on UNISTRUT.
  • 6 stations standard with 3 station standard solenoid manifold for non chemical components.
  • Additional station add-on optional.
  • Compressed air required.
  • May require booster pump if low water pressure.
Car wash system parts

Injector Pumps

STANDARD with Blue White’s popular heavy duty pump head assembled with chemically resistant internals such as Teflon-coated EP diaphragms, Viton O-ring seals, Hastelloy C valve springs and PVDF cartridge fittings. In addition, each unit includes Blue White’s best PVC anti-siphon check valve with Viton seals and Polypropylene footvalve strainer. Also included is a molded acrylic flow indicator with glass float attached to suction tubing. The 520-2007 & 520-2008’s ball bearing motor provides smoother and stronger operation which can handle pressures up to a maximum of 125 PSI.

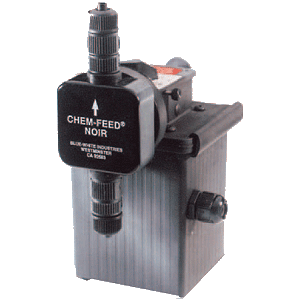

Part# 520-2006 Blue-white (115v):

  • Max Volume – 10.6 Oz/min; Max Psi=70
  • Use with auto hand wax foam application only. High volume.

520-2007 Blue-white (24v):

  • Max Volume = 5.9 Oz/min; Max Psi=125
  • Use with Non-concentrated Chemicals. Normal Volume.

520-2008 Blue-white (24v):

  • Max Volume = 1.1 Oz/min; Max Psi=125
  • Use with Concentrated Chemicals, Low Volume.
Car wash system parts

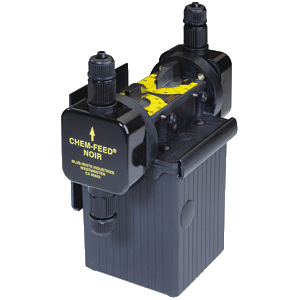

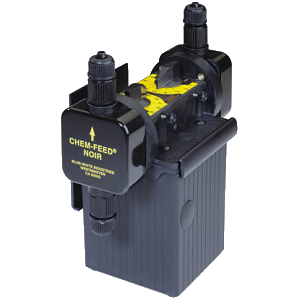

Dual Head Injector Pump

Part# 520-2009 Blue-white (115v only):

  • Dual Head Pump;
  • Max Volume = 40.4 Oz/min; Max Psi = 80.
  • Special Order Only. Engineering Approval Required.

SINJ-01 Soap Injection. Chemical pump soap injection system with solenoid manifold and bracket and cover to mount pump on machine leg.  Upgrade in lieu of dema injection system

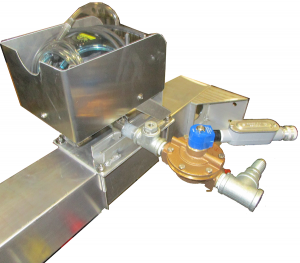

RINJ-01 Rinse aid injection. Chemical pump injection system for rinse with solenoid manifold, bracket and cover to mount pump on machine leg. Add-on chemical pump system.
