The right wash arches keep customers happy and vehicles clean. Whether you need car wash spinners, bubblizers, or other wash arches, we have it all. Browse our incredible selection of arches below from NS Corporation, an industry leader in vehicle wash solutions since 1961.

car wash arches

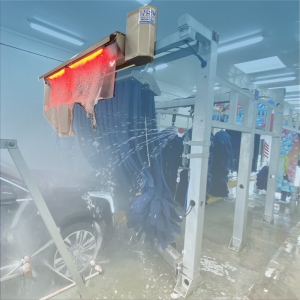

The New Bubblizer

The superior performance you expect from NS Corporation but in a more compact format means faster responses and less chemical usage.

Increase your revenue per car with lower chemical consumption. The best wax or soap delivery applicator. Easy to rinse car wash arches with full coverage.

Part# BUBBLE2.0

Includes:

  • Reservoir tank and air pump unit
  • All PVC internal bubblizer plumbing manifold
  • Standard chemical injection with level mechanical float switch
  • White powder-coated aluminum tank (other colors available.)

Optional Equipment:

  • White powder-coated support arch. Part# SUP-ARCH
  • Light package to get more WOW from your Bubblizer. Part# BUBBLIZER-R
  • Upgrade any sign light to multi-color. Part# MULTI-COLOR
  • Chemical dosing pump. Part# CHEM MIX
  • Solenoid valve water makeup
Bubblizer Brochure
auto hand wax station

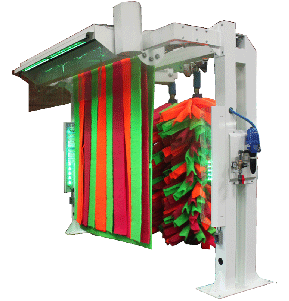

Auto Hand Wax Polishing Station

Automatic waxing and buffing applicator. This unit completely retracts elements as to only service paying customers. Can be programmed to offer the waxing alone or the buffing and waxing together. Includes:

  • The Bubblizer 2.0 waxing unit.
  • A retractable polishing curtain and set of 2 front-side-rear waxing roto mitters.
  • Lighted signs package: Two sides and one top acrylic sign with multi-color lights.

CHEM MIX

A chemical mixing panel for the Auto Hand Wax Unit. Includes a DEMA Mixer (Option).

Part# AHW-2012

Auto Hand Wax Brochure

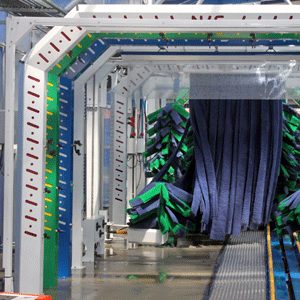

mega wash arches

Mega Car Wash Arches

  • MEGA-SS Single Spray Mega Arch: Full aluminum construction, LED lighting. Powder Coated.
  • MEGA-DS Dual Spray Mega Arch: Full aluminum construction, LED lighting. Powder Coated.
  • MEGA-TF Triple Foam Mega Arch: Full aluminum construction, LED lighting. Powder Coated. Mini foam application. Hydrominder not included.
Mega Arch Brochure

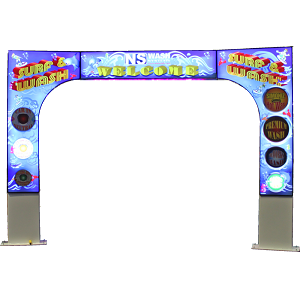

lighted entry arch

The Mega Entry Lighted Arch

MEGA ENTRY ARCH.

All in one directional and menu sign arch.

Features:

  • 120 vac input power req. 2 VDC LED modules
  • On-demand menu flashing
  • Powder-coated aluminum construction
  • 96″ clearance.
Mega Entry Arch Brochure
aluminum arches

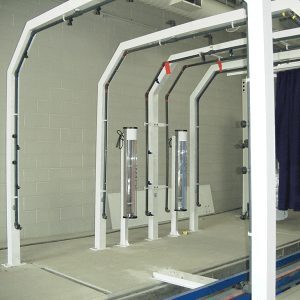

Multifunctional Aluminum Car Wash Arches

DIA-100 Single Manifold Aluminum: Arch 4″ x 4″ square tubing, 96″ vehicle clearance (only for D.L. or R.O. water.) Includes PVC piping, with check valve nozzle assembly, and PVC valve included. Space required: 1 foot.

ALUM-100: Single Manifold Aluminum arch 4″ x 4″ square tubing, 96″ vehicle clearance with PVC piping. Space required: 6 feet.

ALUM-200: Dual Manifold Aluminum arch 4″ x 4″ square tubing, 96″ vehicle clearance with PVC piping. Space required:1 foot.

ALUM-300: Triple Manifold Aluminum arch 4” x 4” square tubing, 96″ vehicle clearance with PVC piping. Space required: 3 feet.

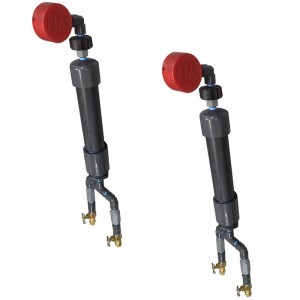

A mini foamer set

Mini Foamer Set

FOM-MINI

Mini Foam application. Mounts on system leg or arch. Hydrominder not included.

  • Two hockey puck-style applicators
  • Mixing chamber
  • Mini ball valve for air and chemical adjustment

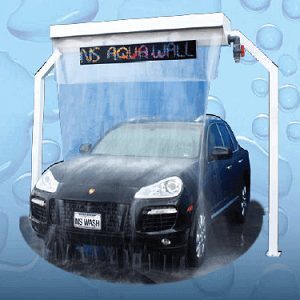

rinsing arch

The Aquawall Rinsing Module

AQUA-WALL

A Waterfall unit that uses 40 to 60 GPM of reclaimed water. Mountable to an existing arch. Will reach any hidden crevices for a thorough rinse.

Includes a powder-coated aluminum tank. A pumping unit is not included. Requires 60 GPM.

Aqua Wall Brochure

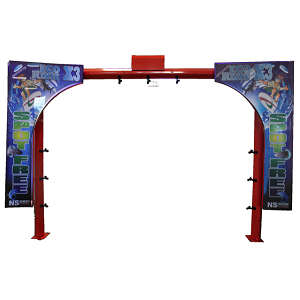

Eco Rinse X3

The Eco Rinse X3

Features of the Eco Rinse X3 Oscillating Car Wash Arch include:

  • 50-degree oscillation for superior coverage.
  • All aluminum white powder-coated construction.
  • Stainless steel live swivel connector standard.
  • Easy Clean check valve dual-spray nozzles
  • Single, center-mounted, motor drive.
  • Part# ECO RINSE X3

Optional Eco Rinse ‘Wave’ Signs that include (left and right):

  • 42″x82″ sign boxes
  • 45 FPM Flasher
  • 110 vac input with 12 VDC LEDs
  • Part# ECO X3 SIGNS
ECO Rinse X3 Brochure

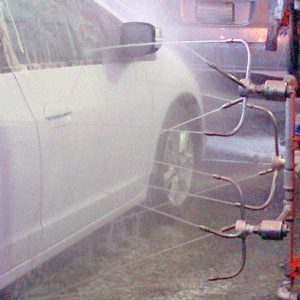

car wash spinner arches

Car Wash Spinner Arches, Blast Line

  • BLAST LINE: Free-standing blast arch with spinners mounted on the passenger and driver side
  • BLAST-ARCH-ST-2: Dual spinners with 4 jets each (10 HP pump required)
  • BLAST-ARCH-ST-3: Triple spinners with 4 jets each (15 HP pump required)
  • BLAST-ARCH-ST-6: Six car wash spinners with 4 jets each (20 HP pump required)
wheel blaster

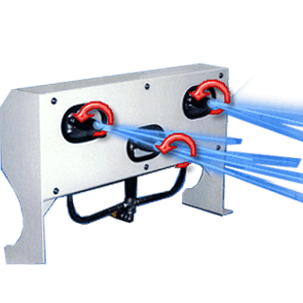

BLST-HP-WH

High-pressure wheel blaster mounted on passenger and driver sides.

Includes:

  • 6-oscillating turbo nozzles
  • 15 HP high-pressure pump, 800 psi with pressure adjustment
  • Holding tank with auto refill
  • Panel NOT included

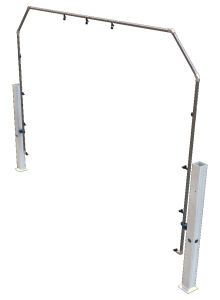

final rinse arch

FRA-100

Free-standing application or final rinse arch, 96″ vehicle clearance, 5 feet support stands. Chemical injection system not included. Space required: 1 foot.

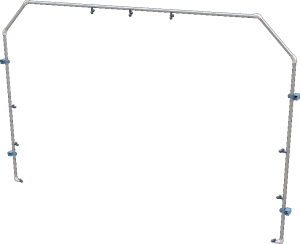

vehicle wash injection system

FRA-150

Application or rinse car wash arches, 96″ vehicle clearance, mounted to support structure. DEMA injection system included.

flooder rinse arch

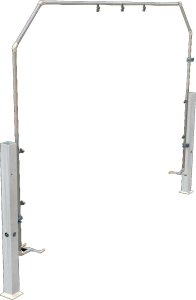

FLOOD-ARC

Flooder rinse arch. Galvanized pipe arch on aluminum stands.
